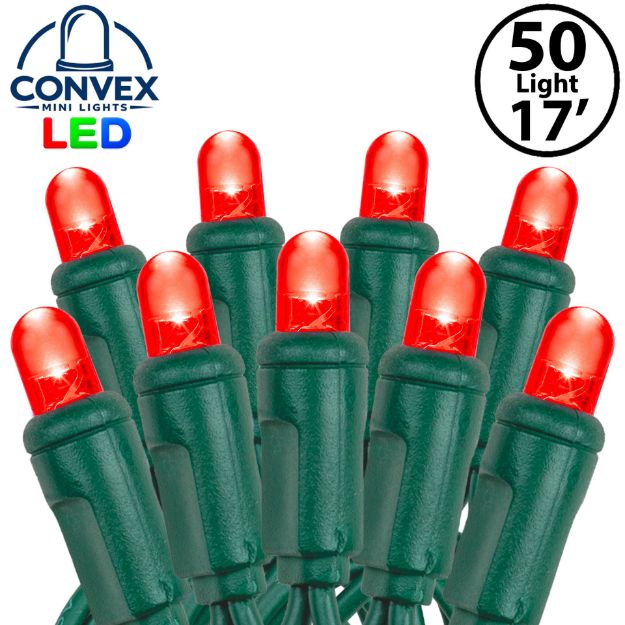

Close-up of red 5mm convex LED mini light bulbs on green wire

Red 5mm convex LED mini light bulbs on green wire

Red convex LED mini lights wrapped around an outdoor wood post

50 light red convex LED mini light set lit

50 light red convex LED mini light set unlit

Comparison of convex and wide angle LED mini light beam spread

Light size comparison showing LED mini light shapes and C7 and C9 replacement bulbs

Commercial Grade Convex 50 LED Red 17' Long on Green Wire

SKU: CGCV50-4-G-RE

Shipping Time

In stock

Price: $17.98

Old price: $18.98

Qty:

+ -

Bulk Discounts

Quantity Ordered

24+

48+

Each Price

$17.98

$14.97

$12.96

Overview
Specifications

Our Commercial Grade Convex 50 LED mini lights use a rounded, dome-shaped 5mm lens that gathers the light into a narrower, spotlight-style beam. Where wide angle (concave) bulbs spread light out for a soft, even wash, convex bulbs give each bulb a distinct, sparkling point of light, which makes them a great choice for wrapping tree trunks and branches, outlining shrubs, railings and windows, and anywhere you want individual bulbs to stand out. Solid red bulbs make a bold, saturated statement on trees, wreaths and storefront displays. The green wire blends into trees, bushes and garland.

Each string has 50 non-removable commercial grade LEDs on 4" centers for a 17' lighted length. Full wave rectification keeps the light flicker-free with no special adapter needed, and if one bulb goes out the rest stay lit. The electrical specs match our 50-light wide angle sets, so you can connect up to 43 strings end to end at just 4.8 watts per string.

50 Red 5mm convex LEDs, commercial grade with non-removable bulbs
Focused, spotlight-style beam from a rounded convex lens
Length: 17' long with 4" bulb spacing, 6" lead and 6" tail
Green wire, 22 AWG
Watts: 4.8 watts per string (0.04 amps), 120V
Connect up to 43 strings end to end with the stackable male plug and end connector
Full wave rectified: no flicker, no rectifier adapter needed
If a bulb burns out the rest remain lit
Average bulb life: 40,000 hours
UL Listed for indoor/outdoor use
Warranty: 3 years, seasonal use

Products specifications

Attribute name	Attribute value
Holiday	Christmas
Light Color	Red
Bulb Type	LED
Bulbs Per Set	50
Wire Color	Green Wire
Bulb Spacing	4 Inches
Total String Length	17 Feet
LED Bulb Shape	Convex 5MM
Watts Per Set	4.8 Watts
Amps Per Set	0.04 Amps
Female Plug	Yes/End-to-End Connectable
Connection	Stackable Male Plug
Average Bulb Life	40,000 Hours
Type	Mini Lights
Max Connections	43 Sets
Dimmable	Yes
Voltage	120V
Rating	UL Listed
Lead Length	6 Inches
Tail Length	6 Inches
Warranty	3 Years, Seasonal Use
Wire Gauge	22 AWG
Use	Indoor/Outdoor
Package Quantity	1 Stringer
Case Quantity	24 Strings

50 Red 5mm convex LEDs, commercial grade with non-removable bulbs
Focused, spotlight-style beam from a rounded convex lens
Length: 17' long with 4" bulb spacing, 6" lead and 6" tail
Green wire, 22 AWG
Watts: 4.8 watts per string (0.04 amps), 120V
Connect up to 43 strings end to end with the stackable male plug and end connector
Full wave rectified: no flicker, no rectifier adapter needed
If a bulb burns out the rest remain lit
Average bulb life: 40,000 hours
UL Listed for indoor/outdoor use
Warranty: 3 years, seasonal use

Products specifications

Attribute name	Attribute value
Holiday	Christmas
Light Color	Red
Bulb Type	LED
Bulbs Per Set	50
Wire Color	Green Wire
Bulb Spacing	4 Inches
Total String Length	17 Feet
LED Bulb Shape	Convex 5MM
Watts Per Set	4.8 Watts
Amps Per Set	0.04 Amps
Female Plug	Yes/End-to-End Connectable
Connection	Stackable Male Plug
Average Bulb Life	40,000 Hours
Type	Mini Lights
Max Connections	43 Sets
Dimmable	Yes
Voltage	120V
Rating	UL Listed
Lead Length	6 Inches
Tail Length	6 Inches
Warranty	3 Years, Seasonal Use
Wire Gauge	22 AWG
Use	Indoor/Outdoor
Package Quantity	1 Stringer
Case Quantity	24 Strings
