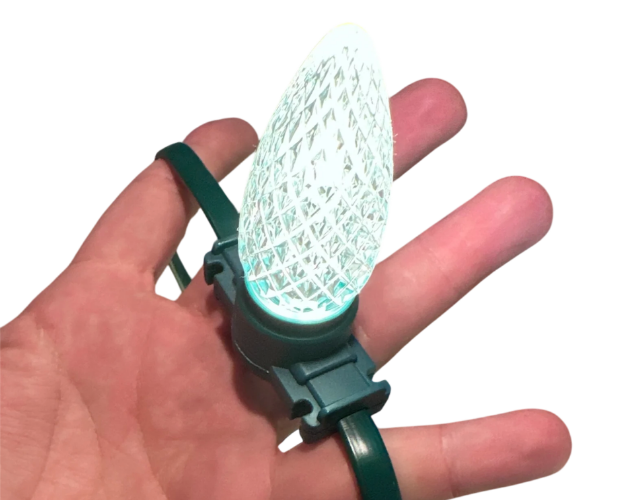

Minleon's RGBW+2 C9 is the brightest color-changing C9 in the Rainmin line. Each faceted bulb holds three RGBW LEDs, including a dedicated warm white channel, so the same lights can run vivid color effects for the holidays and return to a clean warm white the rest of the year. A 4-wire DoubleDATA line keeps the signal moving through the run even if a single pixel fails, and twist-lock connectors make it easy to join modules into custom lengths for rooflines, gutters, tree wraps and light canopies.
This module has a single bulb on green wire with 15" spacing and a 7.5" lead at each end, so connected modules keep an even 15" spacing (15" overall). Control it from a Minleon WEC3 Wi-Fi Effects Controller for app-based colors, effects and schedules, or from ArtNet and sACN systems used with xLights and Light-O-Rama. Install it permanently in Minleon C9 mounting track, or seasonally with standard C9 gutter clips.
- 1 faceted RGBW+2 C9 bulb, 3 x 5050 RGBW LEDs per bulb
- Overall length: 15", 15" bulb spacing with 7.5" lead and tail
- Green wire, 4-conductor (2 x 22 AWG + 2 x 18 AWG), UV protected
- LED channels: red, green, blue and warm white (approx. 3000K)
- Individually addressable pixels, UCS7604 protocol, 12-bit / 4,096 dimming levels
- 4-wire DoubleDATA line keeps data moving past a failed pixel
- Input: 24V DC; approx. 0.36 watts / 0.015 amps per bulb
- Up to approx. 200 bulbs or 220 feet before power injection
- LLT 4-pin twist-lock connectors join modules end to end
- Compatible with Minleon WEC3 Wi-Fi controllers, NDB+ (ArtNet, E1.31) and MeshTek
- IP66 rated for outdoor use; operating temperature -14°F to 140°F
- 120° viewing angle
